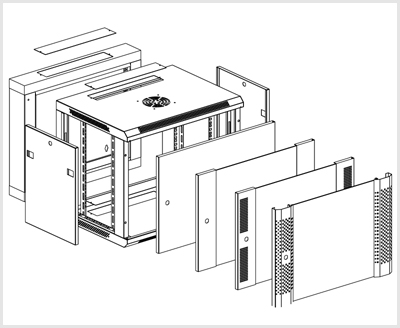

Main structure：

Feature:
Double section welded frame structure; stable and strong;
Compatible with 19" standard network equipments;
Wall mounting installation by backboard or standing with castor;
Toughened glass front door with over 180 turning degree;
Removable side panel, easy to install and maintain (lock optional);
Cable entry on the top cover and bottom panel with knock-out plate; optional brush cable;
L-shaped mounting profile, easy to adjustable on the mounting rail;
Fan cutout on the top cover, easy to install fan;

Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41497 PART1, DIN41494 Part 7, GB/T3047.2-92 Standard;

Material:
SPCC quality cold rolled steel
Thickness: Mounting profile: 1.5mm; other: 1.2mm;

Loading Capacity:
Static loading: 60kg

Degree of protection:
Degreasing, Pickling, Phosphating, Powder Coated
● IP20

Surface finish:
● Degreasing, Pickling, Phosphating, Powder Coated

Model No.

Capacity (U)

Width (mm)

Depth (mm)

Height (mm)

YWC6406

6

600

550

368

YWC6409

9

501

YWC6412

12

635

YWC6415

15

769

YWC6418

18

901

YWC6422

22

1082

YWC6427

27

1304

YWC6606

6

600

600

368

YWC6609

9

501

YWC6612

12

635

YWC6615

15

769

YWC6618

18

901

YWC6622

22

1082

YWC6627

27

1304
