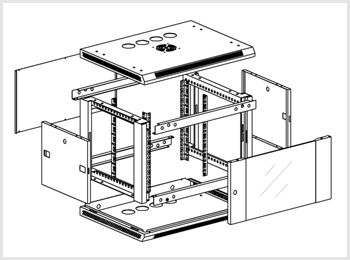

Main structure：

　　

Feature:
Welded main frame,disassembled structure with precise measurement;
Compatible with 19" standard network equipments;
Wall mounting installation with backboard or standing with castor ;
Toughened glass front door with over 180 turning degree;
Removable side panel, easy to install and maintain (lock optional);
Cable entry on the top cover and bottom panel with knock-out plate, optional brush panel;
L-shaped mounting profile, easy to adjustable on the mounting rail;
Fan cutout on the top cover, easy to install fan;
Flat packing, easy to install, about 1/3 volume of assemble packing;

Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41497 PART1, DIN41494 Part 7, GB/T3047.2-92 Standard;

Material:
SPCC quality cold rolled steel
Thickness: Mounting profile: 1.5mm; other: 1.2mm;

Loading Capacity:
Static loading: 60kg

Surface finish:
Degreasing, pickling, phosphoric, powder coated;

Model No.

Capacity (U)

Width (mm)

Depth (mm)

Height (mm)

YWB6406

6

600

450

368

YWB6606

600

YWB6409

9

600

450

501

YWB6609

600

YWB6412

12

600

450

635

YWB6612

600

YWB6415

15

600

450

769

YWB6615

600

YWB6418

18

600

450

901

YWB6618

600
