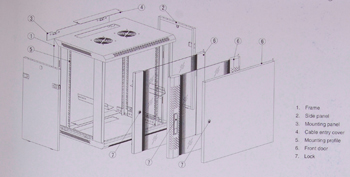

Main structure：

　　

Feature:
Welded main frame, stable and strong structure;
Compatible with 19" standard network equipments;
Wall mounting installation with backboard or standing with castor ;
Toughened glass front door with over 180 turning degree;
Removable side panel, easy to install and maintain (lock optional);
Cable entry on the top cover and bottom panel with knock-out plate, optional brush panel;
L-shaped mounting profile, easy to adjustable on the mounting rail;
Fan cutout on the top cover, easy to install fan;

Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41497 PART1, DIN41494 Part 7, GB/T3047.2-92 Standard;

Material:
SPCC quality cold rolled steel
Thickness: Mounting profile: 1.5mm; other: 1.2mm;

 Loading Capacity:
Static loading: 60kg

Surface finish:
Degreasing, pickling, phosphoric, powder coated;

Model No.

Capacity (U)

Width (mm)

Depth (mm)

Height (mm)

YWA6406

6

600

450

368

YWA6606

600

YWA6409

9

600

450

501

YWA6609

600

YWA6412

12

600

450

635

YWA6612

600

YWA6415

15

600

450

769

YWA6615

600

YWA6815

15

600

800

769

YWA6418

18

600

450

901

YWA6618

600

YWA6422

22

600

450

1082

YWA6622

600

YWA6427

27

600

450

1304

YWA6627

600
