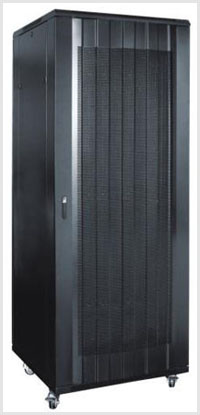

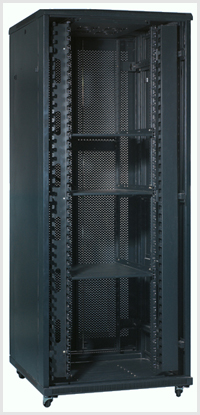

Meshed door:



Feature:
Exquisite design with precise measurement and craftsmanship;
SPCC bending main frame, can be flat packing, easy to install;
Arc shaped or arc wave front door with over 180 turning degree; vented door border;
Metal steel or hexagonal perforated rear door with little round lock, optional other lock;
Removable side panel with latch, easy to install, optional lock;
 Adjustable feet and castors with braked are available simultaneously;
Cable entry on the top, adjustable cable entrance at the bottom with panel;
Advanced handle locks for front door, optional other lock;
S-shaped mounting profile, free to move forward and backward;
Efficient and reliable cabinet connection by baying kit;
Earthling system kit on the side panel, front door and rear door;
Optional plinth to fix cabinet on the floor; under base cable entry;
Disassembled packing(modular packaging), about 40% of assembled volume;



Standard:
●Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491,PART7, ETSI Standard;



Material:
● SPCC quality cold rolled steel
● Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other 1.2mm;



Loading Capacity:
● Static loading: 800kg (on the adjustable feet)



Degree of protection:
● IP20



Surface finish:
● Degreasing, Pickling, Phosphating, Powder Coated;





Model Size:





Model No.

Capacity(U)

Width (mm)

Depth (mm)

Height (mm)

VC6618

18

600

600

988

VC6818

800

VC6018

1000

VC6622

22

600

600

1166

VC6822

800

VC6022

1000

VC6627

27

600

600

1388

VC6827

800

VC6027

1000

VC6632

32

600

600

1610

VC6832

800

VC6032

1000

VC6637

37

600

600

1833

VC6837

800

VC6037

1000

VC6237

1200

VC6642

42

600

600

2055

VC6842

800

VC6042

1000

VC6242

1200

VC8642

42

800

600

VC8842

800

VC8042

1000

VC8242

1200

VC6647

47

600

600

2277

VC6847

800

VC6047

1000

VC6247

1200
