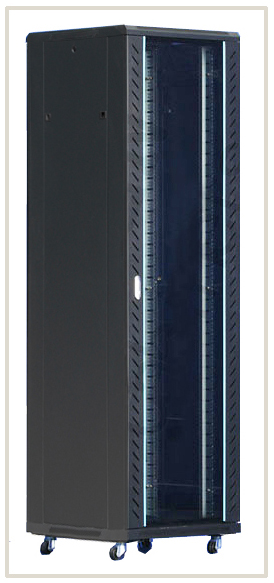

Main structure：

　　

Feature:
Exquisite design with precise measurement and craftsmanship；
SPCC bending main frame, can be flat packing, easy to install;
Toughened glass front door with over 180 turning degree; vented door border;
Metal steel or hexagonal perforated rear door with little round lock, optional other lock;
Removable side panel with latch, easy to install, optional lock;
 Adjustable feet and castors with braked are available simultaneously;
Cable entry on the top, adjustable cable entrance at the bottom with panel;
Advanced handle locks for front door, optional other lock;
S-shaped mounting profile, free to move forward and backward;
Efficient and reliable cabinet connection by baying kit;
Earthling system kit on the side panel, front door and rear door;
Optional plinth to fix cabinet on the floor; under base cable entry;
Disassembled packing(modular packaging), about 40% of assembled volume;

Standard:
●Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491,PART7, ETSI Standard;

Material:
● SPCC quality cold rolled steel
● Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other 1.2mm;

Loading Capacity:
● Static loading: 800kg (on the adjustable feet)

Degree of protection:
● IP20

Surface finish:
● Degreasing, Pickling, Phosphating, Powder Coated;

Model No.

Capacity(U)

Width (mm)

Depth (mm)

Height (mm)

VB6618

18

600

600

988

VB6818

800

VB6018

1000

VB6622

22

600

600

1166

VB6822

800

VB6022

1000

VB6627

27

600

600

1388

VB6827

800

VB6027

1000

VB6632

32

600

600

1610

VB6832

800

VB6032

1000

VB6637

37

600

600

1833

VB6837

800

VB6037

1000

VB6237

1200

VB6642

42

600

600

2055

VB6842

800

VB6042

1000

VB6242

1200

VB8642

42

800

600

VB8842

800

VB8042

1000

VB8242

1200

VB6647

47

600

600

2277

VB6847

800

VB6047

1000

VB6247

1200
