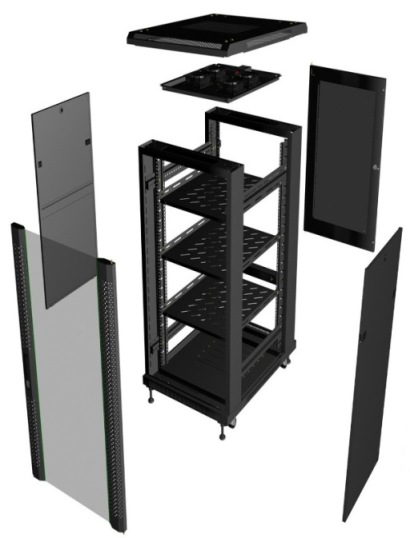

Main structure：

　                   　

Feature:
Exquisite design with precise measurement and craftsmanship；
SPCC bending main frame, can be flat packing, easy to install;
Toughened glass front door with over 180 turning degree; arc vented door border;
Metal steel or hexagonal perforated rear door with little round lock, optional other lock;
Removable side panel with latch, easy to install, optional lock;
 Adjustable feet and castors with braked are available simultaneously;
Cable entry on the top, adjustable cable entrance at the bottom with panel;
Advanced handle locks for front door, optional other lock;
S-shaped mounting profile, free to move forward and backward;
Efficient and reliable cabinet connection by baying kit;
Earthling system kit on the side panel, front door and rear door;
Optional plinth to fix cabinet on the floor; under base cable entry;
Disassembled packing(modular packaging), about 40% of assembled volume;

Standard:
●Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491,PART7, ETSI Standard;

Material:
● SPCC quality cold rolled steel
● Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other 1.2mm;

Loading Capacity:
● Static loading: 800kg (on the adjustable feet)

Degree of protection:
● IP20

Surface finish:
● Degreasing, Pickling, Phosphating, Powder Coated;

Model No.

Capacity(U)

Width (mm)

Depth (mm)

Height (mm)

VA6618

18

600

600

988

VA6818

800

VA6018

1000

VA6622

22

600

600

1166

VA6822

800

VA6022

1000

VA6627

27

600

600

1388

VA6827

800

VA6027

1000

VA6632

32

600

600

1610

VA6832

800

VA6032

1000

VA6637

37

600

600

1833

VA6837

800

VA6037

1000

VA6237

1200

VA6642

42

600

600

2055

VA6842

800

VA6042

1000

VA6242

1200

VA8642

42

800

600

VA8842

800

VA8042

1000

VA8242

1200

VA6647

47

600

600

2277

VA6847

800

VA6047

1000

VA6247

1200
