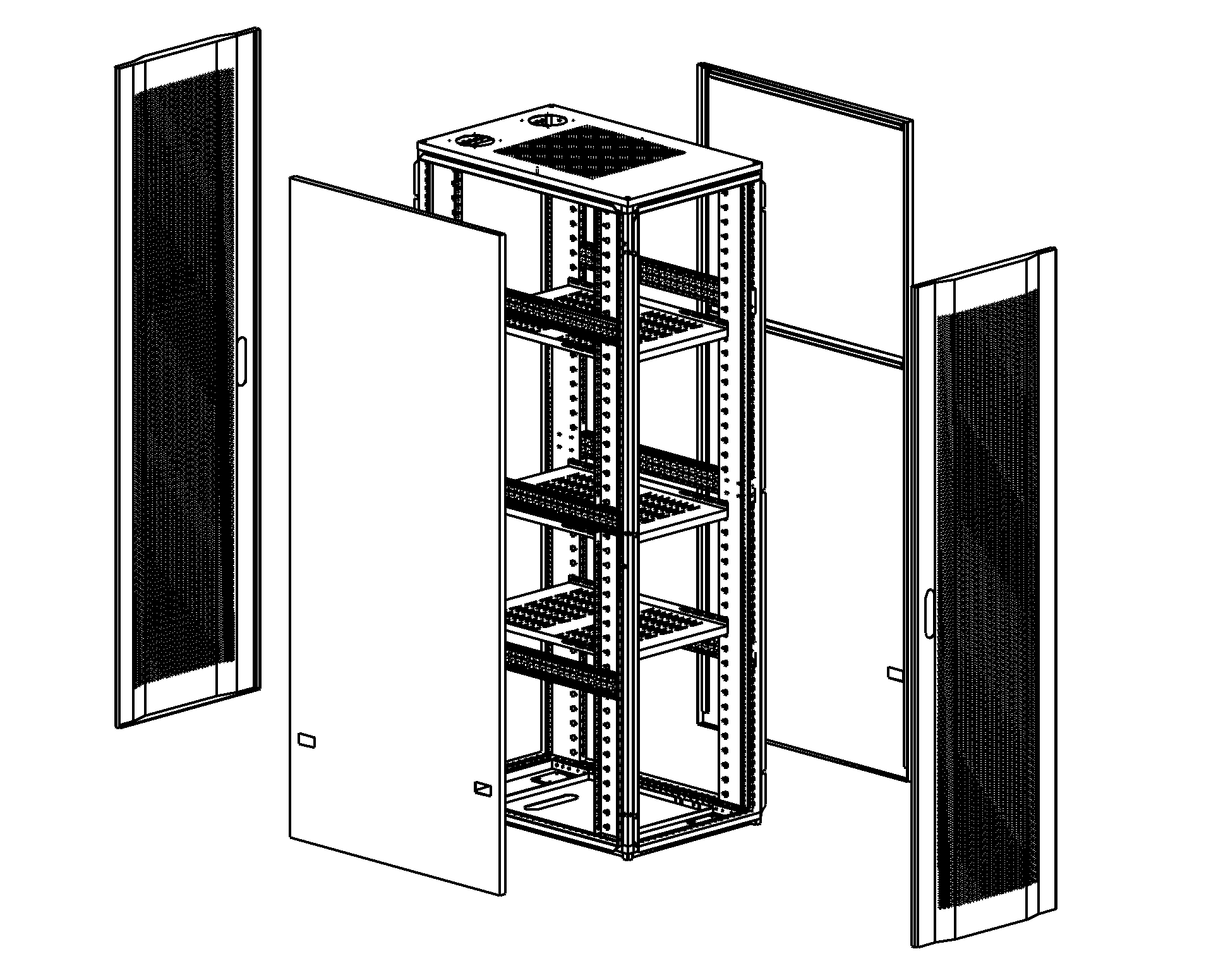

Main structure：

Feature:
Exquisite design with precise measurement and craftsmanship；
Nine-folded profiled as mainly frame, welded frame with high intensity;

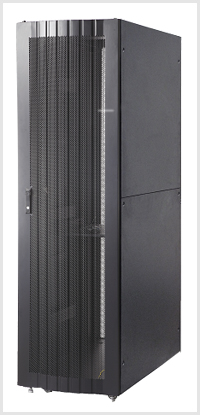

High-density perforated front door (single open) with over 130 turning degree;

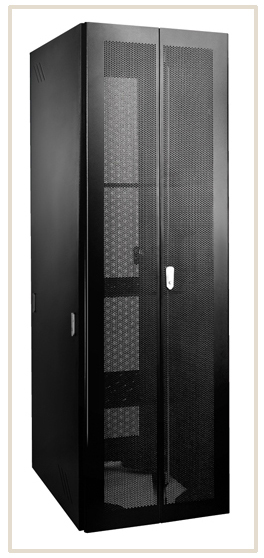

High-density perforated rear doors (dual open) enable equipment ventilation and reliable operation;
Hexagonal perforated designed, and make the ventilation rate above 65%;
Removable side panel, easy to install and maintain with lock;
Connected by four-corner to ensure the strength and stability;
Adjustable feet and castors are available;
Adjustable cable entry on the top, bottom with cable entrance;
Metal cable ring on the mounting profile for cable management’
Efficient baying kit of cabinet, earthing kit;
Supplied as welded structure, also supplier as a flat packing,
Various optional Accessories;

Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491 Standard;

Material:
Frame: Nine-folded profiled;
Others: SPCC quality cold rolled steel
Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other 1.2mm;

Loading Capacity:
Static loading:1000kg

Degree of protection:
IP20

Surface finish:
Frame: degreasing, pickling, phosphoric, dip-coat primed, powder coat;
Others: degreasing, pickling, phosphoric, powder coat;

Model No.

Capacity ( U )

Width (mm)

Depth (mm)

Height (mm)

X2-6622

22

600

600

1119

X2-6922

800

X2-6022

1000

X2-6627

27

600

600

1344

X2-6827

800

X2-6027

1000

X2-6632

32

600

600

1569

X2-6832

800

X2-6032

1000

X2-6637

37

600

600

1794

X2-6837

800

X2-6037

1000

X2-6642

42

600

600

2019

X2-6842

800

X2-6042

1000

X2-6242

1200

X2-8642

42

800

600

X2-8842

800

X2-8042

1000

X2-6647

47

600

600

2244

X2-6847

800

X2-6047

1000
