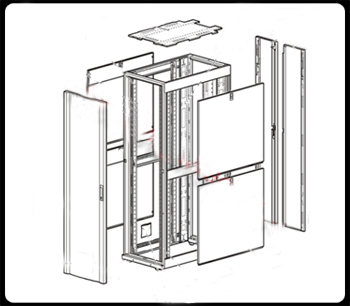

Main structure：

　　

Feature:
Exquisite design with precision measurement and craftsmanship;
Strong and stable structure to support up to 1000kg maximum(static loading);

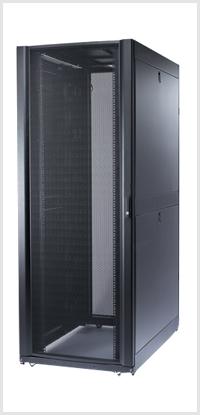

Arc high-density perforated front door (single open) with over 130 turning degree;
High-density perforated rear doors enable equipment ventilation and reliable operation;
Several lockable cable holes on top and bottom;

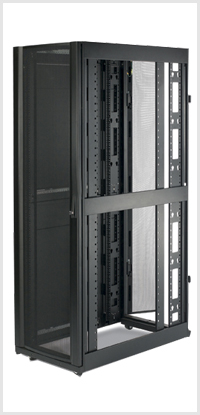

Side panel is easy to install and enable convenient operation from any side of the rack;
Large draught area: over 4500 square cm draught area regarding 42U network cabinet;
Sensitive thermostat panel optional;
Supplied as welded structure, also supplier as a flat packing;
Various optional Accessories;

Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491 Standard;
Compatible with ETSI standard;

Material:
Material :SPCC quality cold rolled steel;
Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other 1.2mm;

Loading Capacity:
Static loading:1000kg

Degree of protection:
IP20

Surface finish:
Degreasing, pickling, phosphoric, dip-coat primed, powder coat;

Model No.

Capacity ( U )

Width (mm)

Depth (mm)

Height (mm)

X1-6622

22

600

600

1110

X1-6922

800

X1-6627

27

600

600

1340

X1-6827

800

X1-6632

32

600

600

1560

X1-6832

800

X1-6637

37

600

600

1790

X1-6837

800

X1-6642

42

600

600

2010

X1-6842

800

X1-6042

1000

X1-7842

42

750

800

X1-7142

1000
